Gear design: define duty before drawing teeth

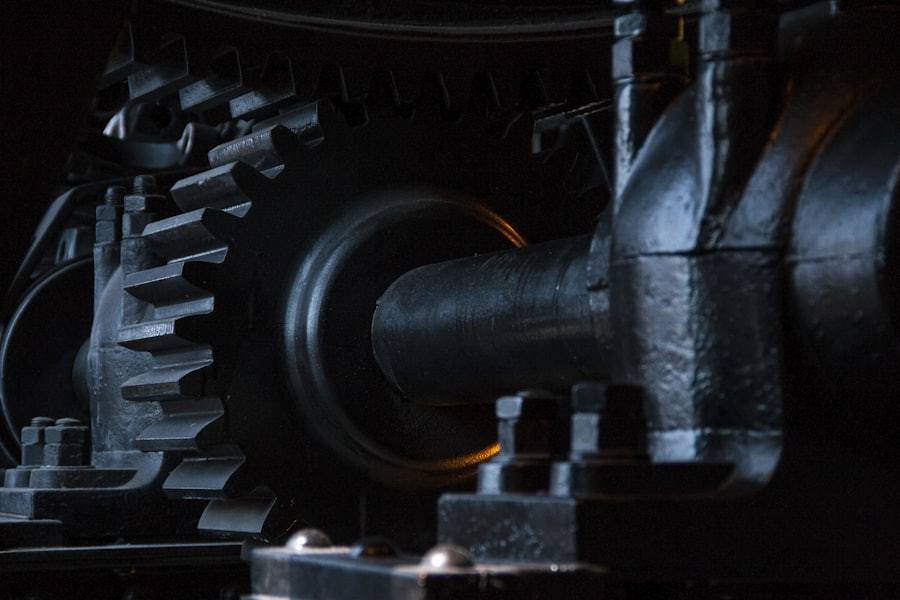

Gears are designed by defining the application duty before finalizing tooth geometry. Start with the required motion or ratio, torque, speed, life, available space and shaft layout; then select geometry, material, heat treatment, accuracy, lubrication and inspection requirements. PairGears treats those choices as one working system rather than a tooth-profile drawing alone.
Detailed explanation

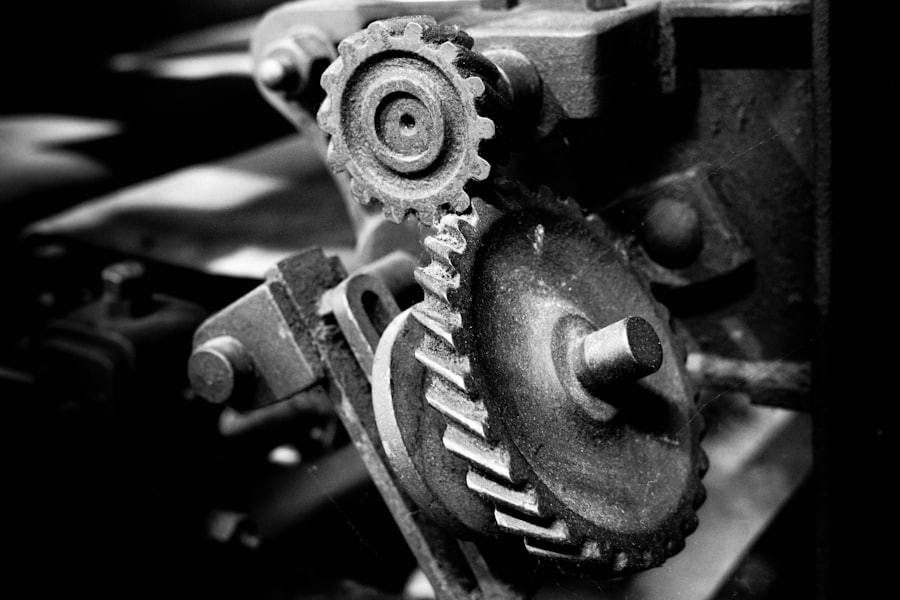

A practical sequence: state the driver and driven members, ratio convention, duty cycle and target life; choose the gear type and shaft arrangement; establish module or DP, pressure angle, tooth count, helix angle, face width and center distance; then assess contact and bending capacity, temperature, lubrication, noise, manufacturing route and tolerances.

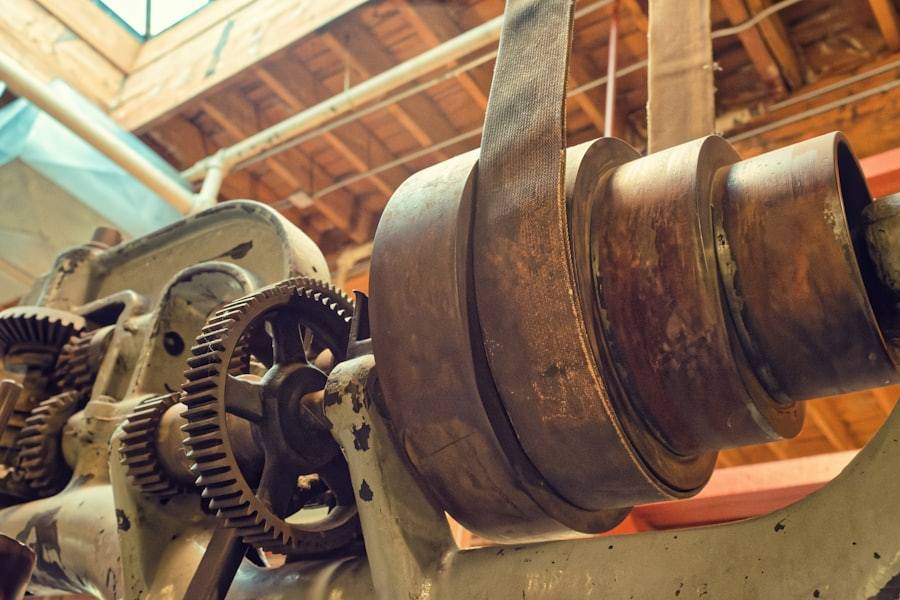

Geometry must also fit the manufacturing and inspection plan. A smaller module, tighter accuracy grade, finish process or heat-treatment route can change cost, distortion risk and what needs measuring. The PairGears spur-gear design overview explains why ratio, strength, material, accuracy and manufacturability cannot be selected in isolation.
Example and data to confirm
For an RFQ or design review, provide the application, torque and speed range, desired ratio, life target, layout or housing constraints, mating-part data, environment, material preference, heat-treatment need, accuracy/inspection requirement, quantity and target date. Missing inputs should be marked as assumptions and verified before release—not filled in from a similar-looking gear.
