Construction machinery gears: identify the load path first

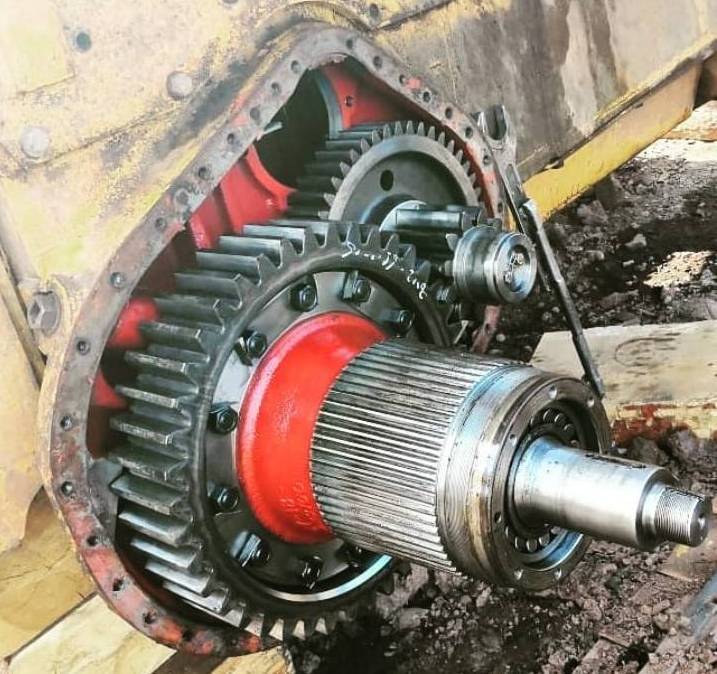

Construction machines use gears in travel drives, swing drives, transmissions, axle and differential systems, hydraulic-pump drives and winches. What matters is the real load path: torque peaks, reversals, shock, contamination, housing stiffness, lubrication and service access. A gear that suits one drive location may not be right for another, even when the parts appear similar.
What to define before selecting the gear

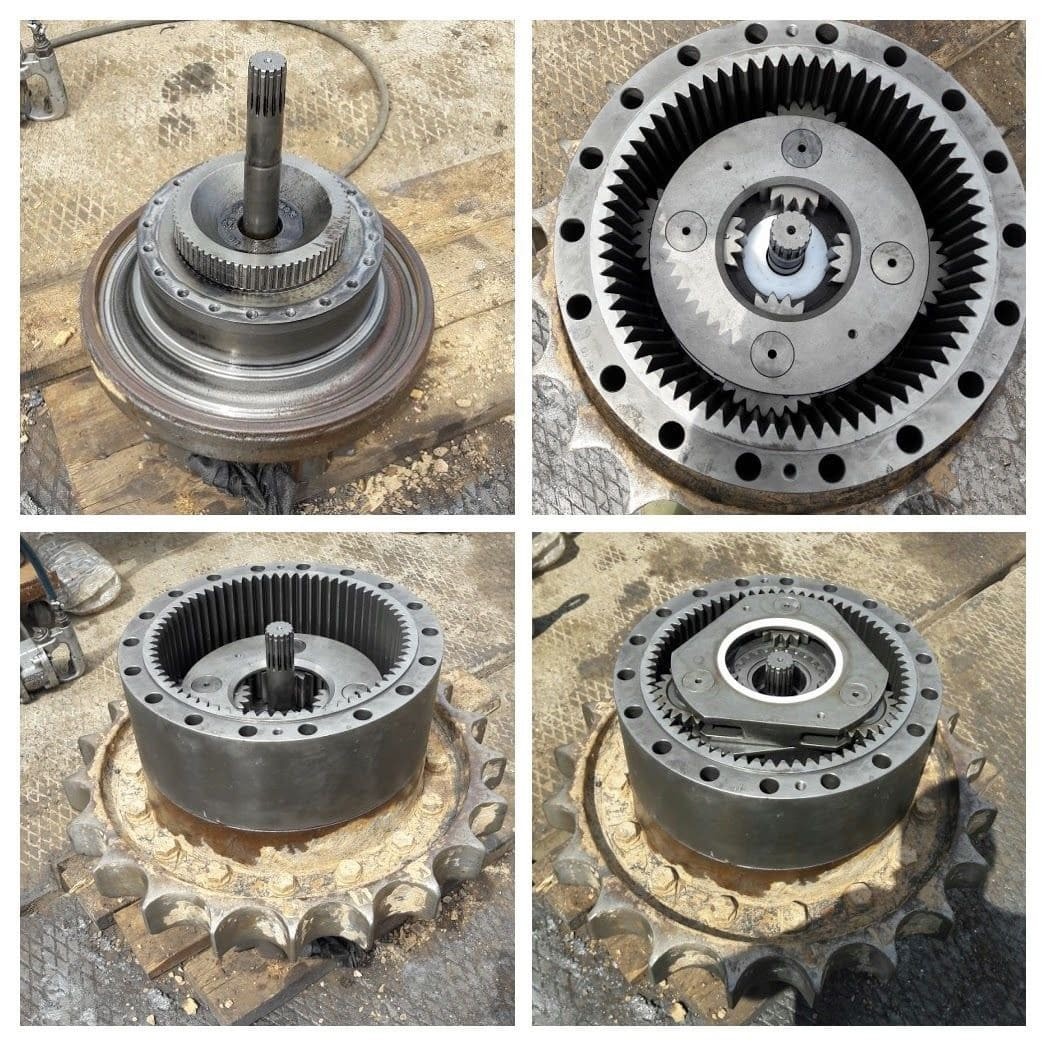

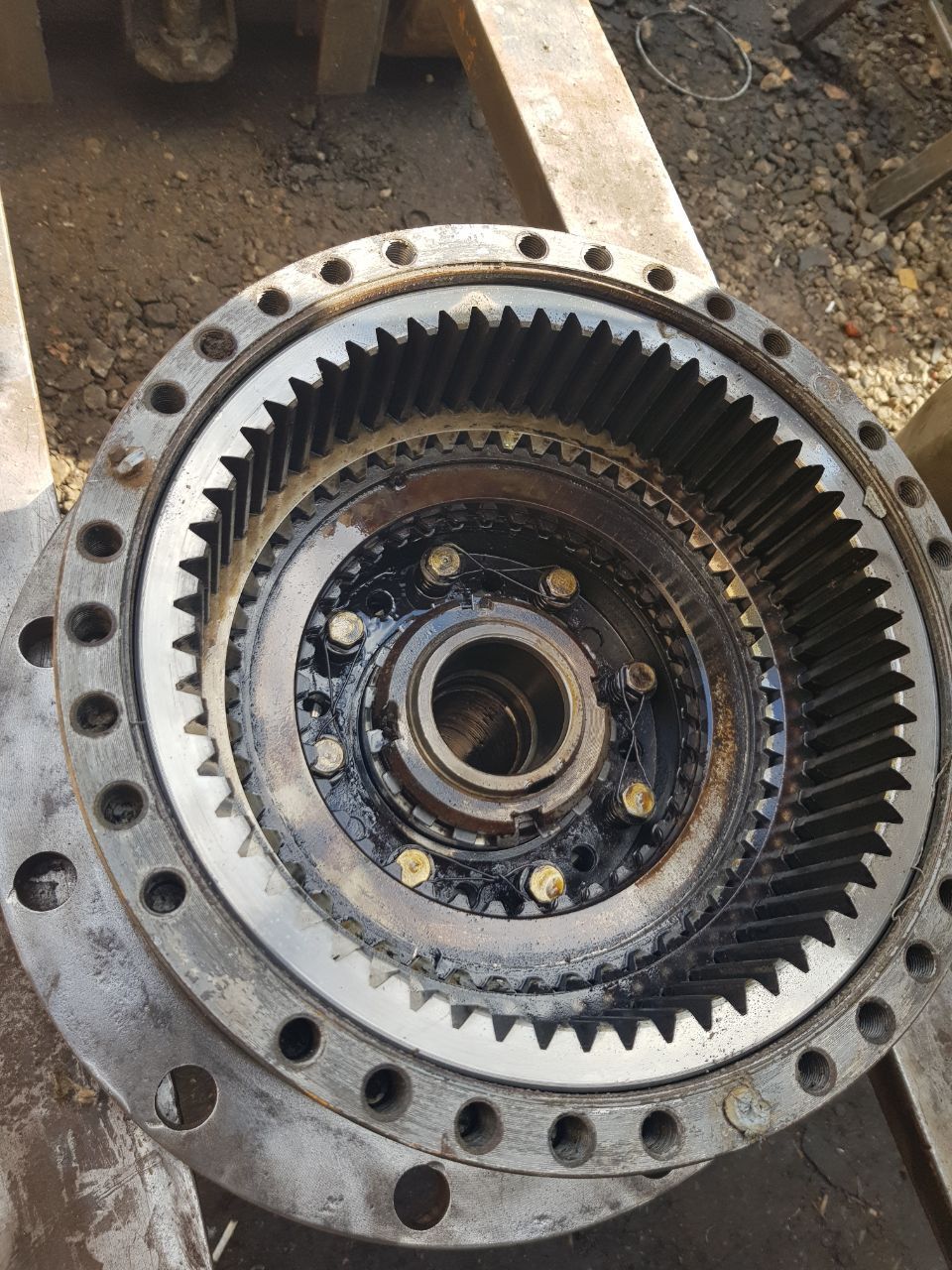

Excavators, loaders, bulldozers and cranes can combine low speed with high torque, frequent direction changes and harsh contamination. Planetary stages and ring gears can also be affected by bearing location and housing deflection. Define the drive position and mating parts before deciding whether the priority is tooth strength, contact pattern, heat control, lubrication or mounting stiffness.
For related catalog context, PairGears lists Construction Machinery Gears.
Example and decision check
A travel reduction stage and a swing drive can both use planetary gearing, but their duty cycles and transient loads may differ. A practical review records the ratio, torque and speed range, starts and reversals, ambient exposure, lubricant, gear-to-bearing locations, inspection datum and allowed downtime instead of relying on an OEM reference alone.
