How do CNC gear shaper machines work?
- Share
- Issue Time
- Aug 18,2026
How do CNC gear shaper machines work

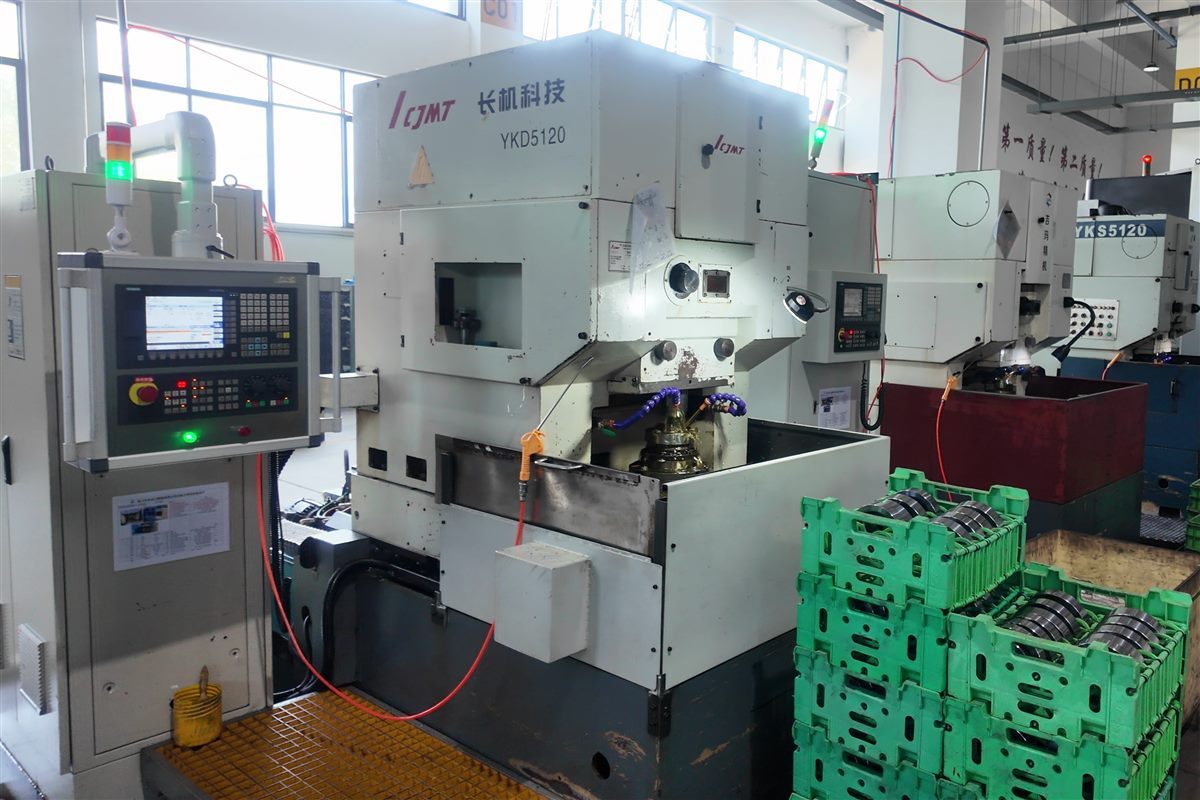

A CNC gear shaper generates gear teeth by reciprocating a pinion-shaped cutter while the cutter and workpiece rotate in a precisely synchronized relationship. The generating motion creates the tooth flanks progressively, which is why the cutter geometry, timing, stroke, fixture and inspection reference all matter to the finished mesh.
How the process should be planned

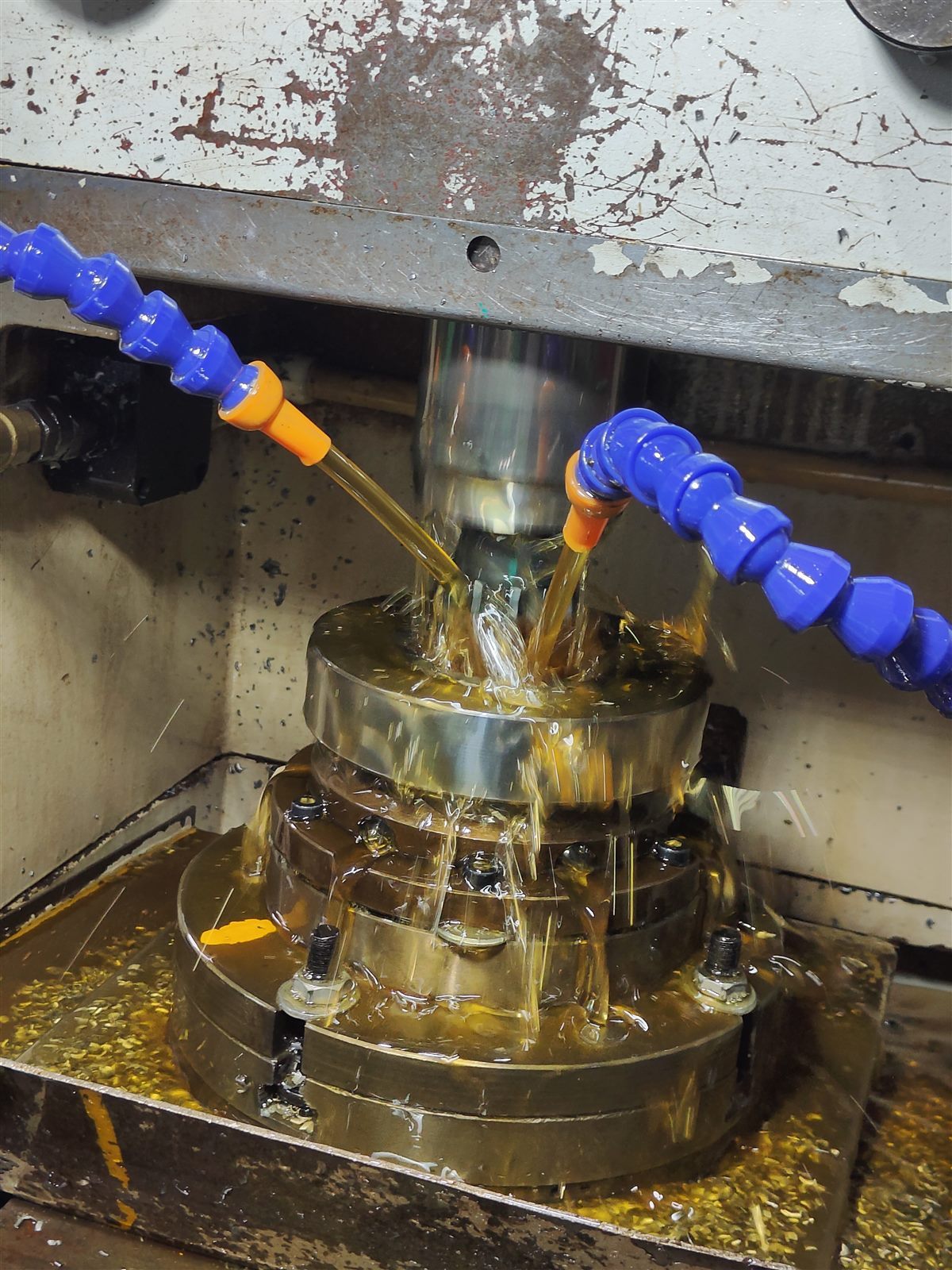

The cutter moves up and down to cut, then returns with clearance while the machine advances the coordinated rotary motion. CNC control manages the programmed relationship and setup positions. Gear shaping is often considered where geometry or access makes another route less suitable; feasibility still depends on the actual tooth form, blank design, tool clearance, material and quality target.
Example and decision checks
Example: an internal gear review needs more than a nominal module. The manufacturing team must confirm tooth count, pressure angle, face width, root and tip clearances, blank bore and datum scheme, heat-treatment state, cutter selection and the requested measurement method. PairGears keeps those inputs tied to the drawing rather than treating a machine name as a capability claim.
