How can I reduce gear whine: grinding, lapping, or superfinishing?
- Share
- Issue Time
- Aug 5,2026
How to reduce gear whine with finishing
Gear whine should be diagnosed before choosing a finishing process. Grinding is often used after heat treatment when tooth geometry or distortion needs correction. Lapping and other fine-finishing methods can refine contact and surface condition. The right route depends on the noise mechanism, gear geometry, tolerance, load, lubrication and the mating assembly.
Start with the correct failure mode
- Check profile, lead, pitch, runout and contact pattern before assuming surface finish is the cause.

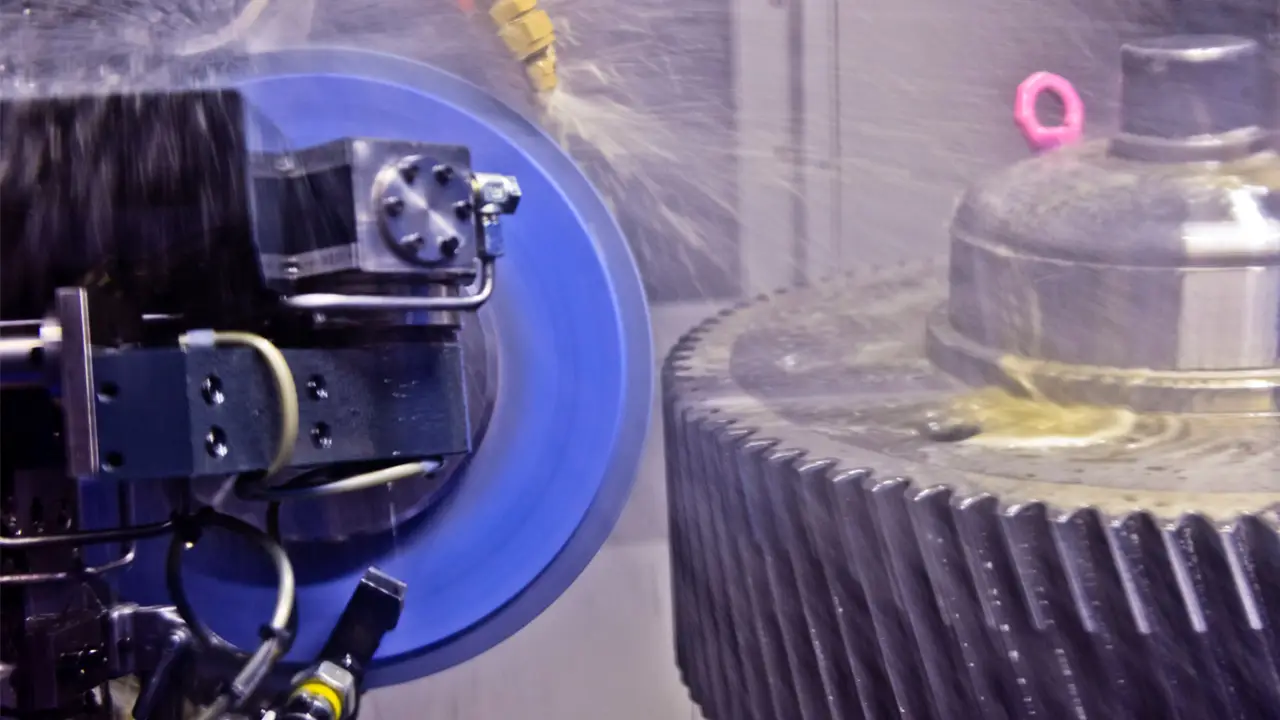

- Use grinding when final geometry needs correction after hardening.
- Use lapping or fine finishing only where the contact and surface objective justifies it.
Example: noise after heat treatment
If heat treatment changes tooth geometry, correcting profile and lead may matter more than simply polishing the flank. Confirm the agreed inspection method and the condition of bearings, housing and the mating gear as well.
