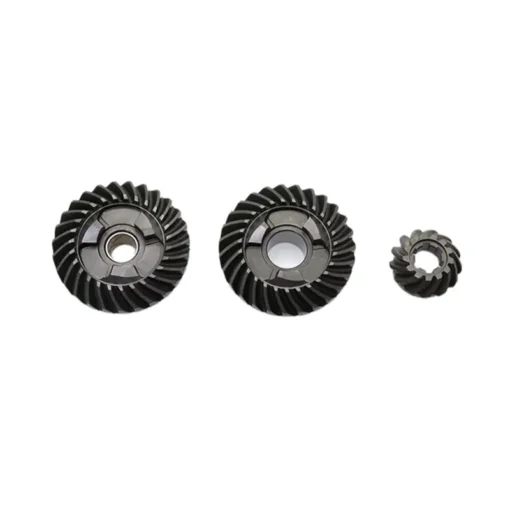

Marine Outboard Spiral Bevel Gear Set Solutions | Case

Marine outboard gearboxes typically need a right-angle drive to transfer power and torque between intersecting shafts. Bevel gears are commonly used for this 90° direction change.

This spiral bevel gear set is supplied as matched pairs, and the ratio can be defined by tooth count and verified during inspection. Spiral bevel designs generally run smoother and with lower noise than straight bevel gears, when properly matched and set up.

1. Customer & Application

Customer need:

This case represents a typical request from marine service/repair customers:

• Need a replacement spiral bevel gear set for an outboard right-angle gearbox

• Want matched gear & pinion, not loose parts (to avoid abnormal noise and premature wear)

• Need inspection evidence for incoming QC and rebuild validation (dimensions / tooth geometry / hardness as applicable)

Spiral bevel gear sets are commonly manufactured and lapped as pairs; guidance widely notes they should be replaced as a pair to maintain correct meshing.

Application:

Outboard gearcases house the key transmission elements (e.g., forward/reverse/pinion gears) and the propeller shaft assembly; gear ratio is typically determined by forward gear teeth ÷ pinion teeth.

For marine environments, gear meshing stability is especially sensitive to backlash setup, contact pattern, and lubrication, so “matched set + verified geometry” is preferred over random replacement.

2. What We Delivered

2.1 Matched Set Supply

We supply the gear and pinion as a matched pair and keep the pairing traceable in packaging/labels, because spiral bevel pairs are commonly optimized together during manufacturing and setup.

2.2 Custom Ratio by Tooth Count

For outboard gearcases, ratio selection is commonly expressed by tooth count (forward gear teeth divided by pinion teeth). We confirm the tooth counts and pairing before production and verification.

2.3 Inspection Reports

Upon request, we can provide professional inspection reports, including tooth profile/spacing checks, surface roughness, hardness and metallography after heat treatment, and assembly fit checks—aligned with our documented inspection services.

3. Why Spiral Bevel for Outboard Gearboxes

Spiral bevel gears have curved teeth and gradual engagement; engineering references commonly note they are smoother and quieter in operation than straight bevel gears (when correctly matched and installed).

They are also used in drive sections for ships and other vehicles where precision and stability matter.

4. Typical Project Challenges & Controls

Project Challenge	What Could Go Wrong	How We Solved It
Pair matching	Noise, heat, abnormal contact if mixed parts are used	Supply as matched pair with pairing traceability.
Backlash / contact pattern sensitivity	Early wear or unstable meshing	Confirm key datums and verify geometry; rebuild side sets backlash/contact per service practice.
Marine durability expectations	Corrosion/wear risk	Material/heat-treat verification (hardness/metallography) available per requirement.

FAQ

1. Why do spiral bevel gear sets need to be supplied as matched pairs?

Spiral bevel gears are commonly manufactured and lapped in pairs, so replacing or mixing single gears can affect contact and noise; matched pairs help keep meshing consistent.

2. How can I confirm the gear ratio of my outboard lower unit?

A common method is using tooth count: Forward gear teeth ÷ Pinion teeth = ratio (example shown in service documentation).

3. What information do you need for a quote?

Please provide any of the following: gear photos (both sides), tooth counts, rotation direction/handedness, key dimensions (OD/ID/face width), material/heat-treat requirements if known, and quantity/target lead time.

4. What inspection reports can you provide?

Upon request, we can provide redacted inspection reports (e.g., dimensional checks, tooth geometry items where applicable, hardness/metallography when required) aligned with our inspection capability.

5. How do you pack gear sets for export/marine shipping?

We typically use protective separation (e.g., foam) and anti-rust measures as needed to reduce handling damage and corrosion risk during transit.

If you’re sourcing a marine outboard spiral bevel gear set, send your drawings or samples for a quick quotation.
