Summary
A PairGears guide to worm, spur, and helical gears—how they different, where they win, and how to choose for agriculture, truck, construction, and EV.
1.Introduction
As a precision gear manufacturer and custom gear supplier, PairGears supports programs in Agricultural Machinery, Heavy Truck, Construction Equipment, and Electric Vehicle (EV).
Choosing between worm gears, helical gears, and spur gears is a physics-first decision shaped by duty cycle, packaging, lubrication, and the evidence you can present. Some stages need quiet, efficient power on parallel shafts; others require big reductions in right-angle layouts or hold-at-rest behavior. This guide details how the three forms differ and turns those differences into a selection framework you can apply in sourcing and design reviews.
2.Key Differences Between Worm Gears, Helical Gears and Spur Gears
Spur (straight teeth, parallel shafts): simplest, economical, efficient at modest speeds; noise rises at higher rpm due to abrupt tooth entry.
Helical (angled teeth, parallel or crossed): smoother engagement and higher capacity via longer contact lines; introduces axial force that bearings must carry.
Worm (screw+worm wheel, right angle): very high ratios in one stage with potential back-drive resistance; sliding dominates contact, so efficiency and heat management are central.
3.How Worm Gears, Helical Gears and Spur Gears Work

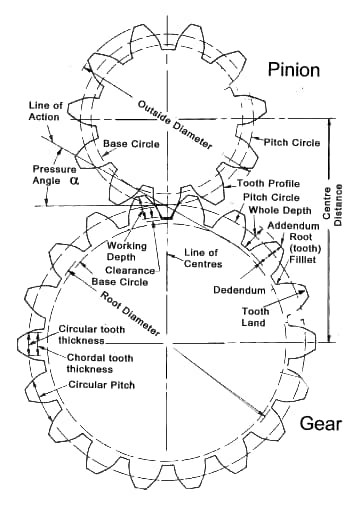

Spur uses involute teeth across the face; engagement starts as a sudden line contact. It suits modular reductions where cost and serviceability outrank acoustic targets, with typical single-stage ratios around 1:1–6:1.

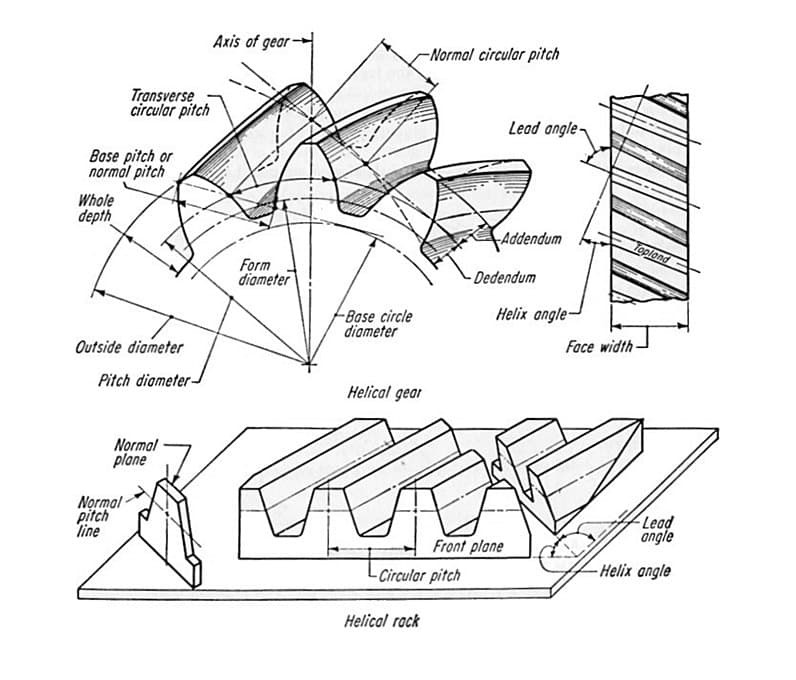

Helical cuts teeth at ~15–30° helix; gradual entry spreads load, improving capacity and acoustics. On parallel shafts, helical is the default for efficient, quiet stages—design axial forces into bearing and housing stiffness.
Worm drives a wheel at 90°; ratio density ~5:1–300:1 enables compact reducers and hold-at-rest behavior (self-locking potential). Efficiency is limited by sliding; bronze wheels and robust thermal paths are common countermeasures.
4.Performance Compare of Worm Gears, Helical Gears and Spur Gears
| Attribute | Spur | Helical | Worm |
| Shaft orientation | Parallel | Parallel or crossed | Right angle |
| Single-stage ratio | Low–moderate | Moderate | Very high |
| Efficiency | High (modest speed) | High (at speed) | Lower (sliding) |
Noise / acoustics | Higher at speed | Low (gradual entry) | Low whine; heat to manage |
Axial force | None | Yes (bearing load) | Minimal; thermal focus |
Capacity | Moderate | High (line length & sharing) | High torque at low speed |
Cost / complexity | Lowest | Medium | Highest (materials & cooling) |
5.Selection Guidance From a Custom Gear Supplier
Start with priority: quiet, efficient parallel shafts → Helical; large single-stage reduction/right-angle/hold-at-rest → Worm; lowest piece cost where noise is secondary → Spur.
Check constraints: envelope and bearing capacity (helical adds axial load); thermal design (worm needs oil and heat paths); cleanliness (filtration protects flanks).
Plan evidence up front: charts, contact patterns, effective case depth (Eht), hardness maps, and CMM dimensions—decisions are only as strong as the proof behind them.

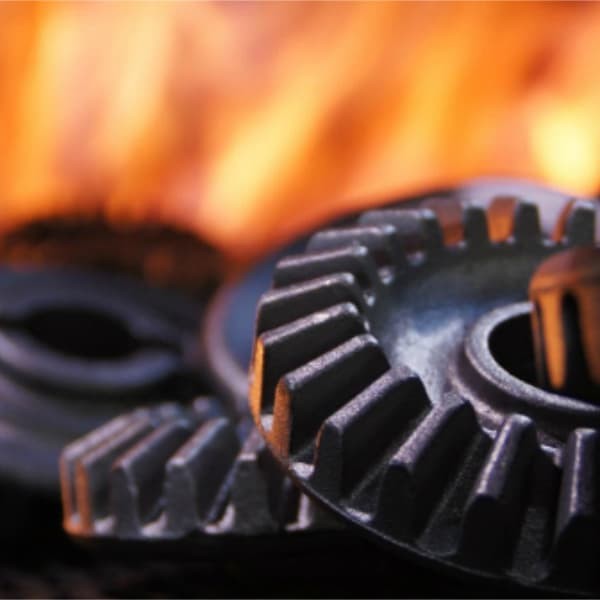

6.Materials and Heat Treatment Choices for a Precision Gear Manufacturer
Spur/Helical (high duty): 16MnCr5 / 20MnCr5 / 18CrNiMo7-6 → carburize + quench + temper → grind/hone; optional superfinish where bearing heat or micro-acoustics demand it.
Spur/Helical (modest duty): medium-carbon steels with induction on flanks/roots; finish as needed.
Worm pairs: alloy-steel worm (surface hardened) + bronze wheel; oil must tolerate boundary lubrication and heat.
Size-critical parts: nitriding or low-distortion carburizing to preserve form with minimal post-HT correction.
7. Lubrication and Thermal Management for Worm, Helical and Spur Stages
Spur/Helical: select viscosity for speed/load; prevent churning and aeration; align seals/breathers with the environment (mud and water in Agricultural Machinery, fine grit in Construction Equipment).
Worm: sliding contact makes oil and cooling central—EP packages, flow around the mesh, and heat paths in housings. Duty cycle (start-stop vs steady) rules thermal design.
Cleanliness: filtration and controlled breathers protect flanks; contamination triggers scuffing/pitting long before strength limits.
8.Tolerances, Micro-Geometry and Acoustics in Parallel and Right-Angle Drives
Backlash windows must reflect thermal growth and oil-film thickness; freeze cold vs hot conditions.
Micro-geometry (helical): profile/lead crowning and bias keep contact centered under load and prevent edge loading.
Runout / concentricity: manage through heat; helix error must align with the target grade.
Contact patterns: verify at mounting distance and representative preload; worm sets need pattern checks under target compliance.
Functional datums: treat bearing seats and spline hubs as datums, not afterthoughts.
9.Sector Field Notes
9.1 Agricultural Machinery
Dirt, shock, long hours; serviceability matters. Helical for primary reductions; Spur for secondary/PTO; Worm for right-angle augers/conveyors or positioners needing hold-at-rest potential.
Tips: carburized flanks on high-load sets; oils tolerant to contamination; bearings sized for helical axial forces; defined chamfers to protect edges.
9.2 Heavy Truck
High torque spikes, long mileage, clear noise targets. Helical dominates quiet parallel stages; Worm fits lifts/actuators that benefit from back-drive resistance; Spur suits low-speed auxiliaries.
Tips: vacuum carburizing + grinding for clean flanks; tight runout to functional datums; charts and contact patterns ready for PPAP.
9.3 Construction Equipment
Transient peaks, heat, bidirectional duty in rugged environments. Helical in slewing/rotation reducers; Worm in compact right-angle holds; Spur in slow accessory trains.
Tips: deep case where feasible; reinforced root/fillets; oil jets that reach the mesh off-design; stout bearings to close helical axial-force loops.
9.4 Electric Vehicle (EV)
High rpm with exposed gearbox acoustics. Helical for e-axle and accessories; Spur only at low speed or isolated duty; Worm for compact right-angle accessories with big ratio—watch thermal paths.
Tips: low-scatter heat treat (LPC + gas quench), minimal grind stock, tight TIR/concentricity; honed/ground flanks to keep the acoustic floor low; verify hot contact patterns.
10.Application-Driven Examples Using Worm Gears, Helical Gears and Spur Gears
Agricultural Machinery — conveyor with hold-at-rest: Worm pair (bronze wheel, high-film-strength oil); check thermal limit at duty peak.
Heavy Truck — compact high-speed reducer: Helical with optimized helix & crowning; vacuum carburize + grind; optional superfinish for micro-acoustics.
Construction Equipment — slewing reducer: Helical stages with deep case and stout thrust bearings; verify patterns across temperature and load.
Electric Vehicle (EV) — accessory right-angle reducer: Worm for ratio density in tight space; thermal paths and oil-jet coverage are deciding factors.
11. Selection Matrix for Worm Gears, Helical Gears and Spur Gears
| Quiet, efficient parallel stage | Helical | Gradual entry; higher capacity; better acoustics at speed | Spur if speed is modest and cost dominates |
Large single-stage reduction, right-angle | Worm | Ratio density 5:1–300:1; hold-at-rest potential | Multi-stage helical if efficiency dominates |
Lowest piece cost | Spur | Simple teeth; easy inspection | Helical is quieter but costs more |
| Limited bearing capacity for axial force | Spur / Worm | No/low axial force into bearings | Helical only with upgraded bearings |
| Tight packaging (90°turn) | Worm | Compact right-angle package | Crossed-axis helical if heat/efficiency allow |
| Tight backlash, predictable contact | Helical | Tunable micro-geometry; stable contact | Nitrided spur for size stability at low speed |
12.Quality Artifacts to Request From Any Custom Gear Supplier
Tooth accuracy: profile/lead/pitch charts to drawing grade.
Through-heat geometry: runout, concentricity, helix error—before/after heat when critical.
Case integrity (if applicable): surface hardness, Eht sections, microhardness traverse; retained austenite when specified.
Functional evidence: light-load contact patterns at mounting distance; defined backlash windows.
Traceability: material heats, furnace loads, quench recipe, finishing parameters, lot IDs; PPAP/FAI level on request.
13.Conclusion
As a precision gear manufacturer, PairGears helps teams choose between worm gears, helical gears, and spur gears with clear physics and hard evidence. Spur brings simplicity and cost, helical delivers efficient parallel-shaft performance with higher capacity, and worm compresses big ratios into right-angle packages with self-locking potential—when thermal paths and oil chemistry are respected. The winning approach is to map duty cycle, packaging, acoustics, and efficiency to the right combination of materials, heat treatment, micro-geometry, lubrication, and quality artifacts.
Explore our manufacturing capabilities and brand background in About, then upload your RFQ or Contact us to translate torque/speed, noise, and cost targets into the right gear form, finish route, and validation plan for Agricultural Machinery, Heavy Truck, Construction Equipment, and Electric Vehicle (EV) programs.
