Why Straight Cut Gears Can Be the Better Choice
- Share
- publisher
- Jessica
- Issue Time
- Nov 24,2025
Summary
Clear guide to straight cut gears from a precision gear manufacturer and custom gear supplier: key uses in agriculture, truck, construction and EV.
1.Introduction
As a precision gear manufacturer and custom gear supplier,PairGears focuses on designing and manufacturing gears such as straight cut gears, bevel gears and shafts for four key sectors: Agricultural Machinery, Heavy Truck, Construction Equipment and Electric Vehicle (EV).
In real projects, the question is often not just which gearbox to use, but which gear type should be used at each gear stage: straight cut gears, helical gears or other forms. This article looks at straight cut gears themselves – what they are, why they can be the better choice in some conditions, and how they are used across the four PairGears sectors.

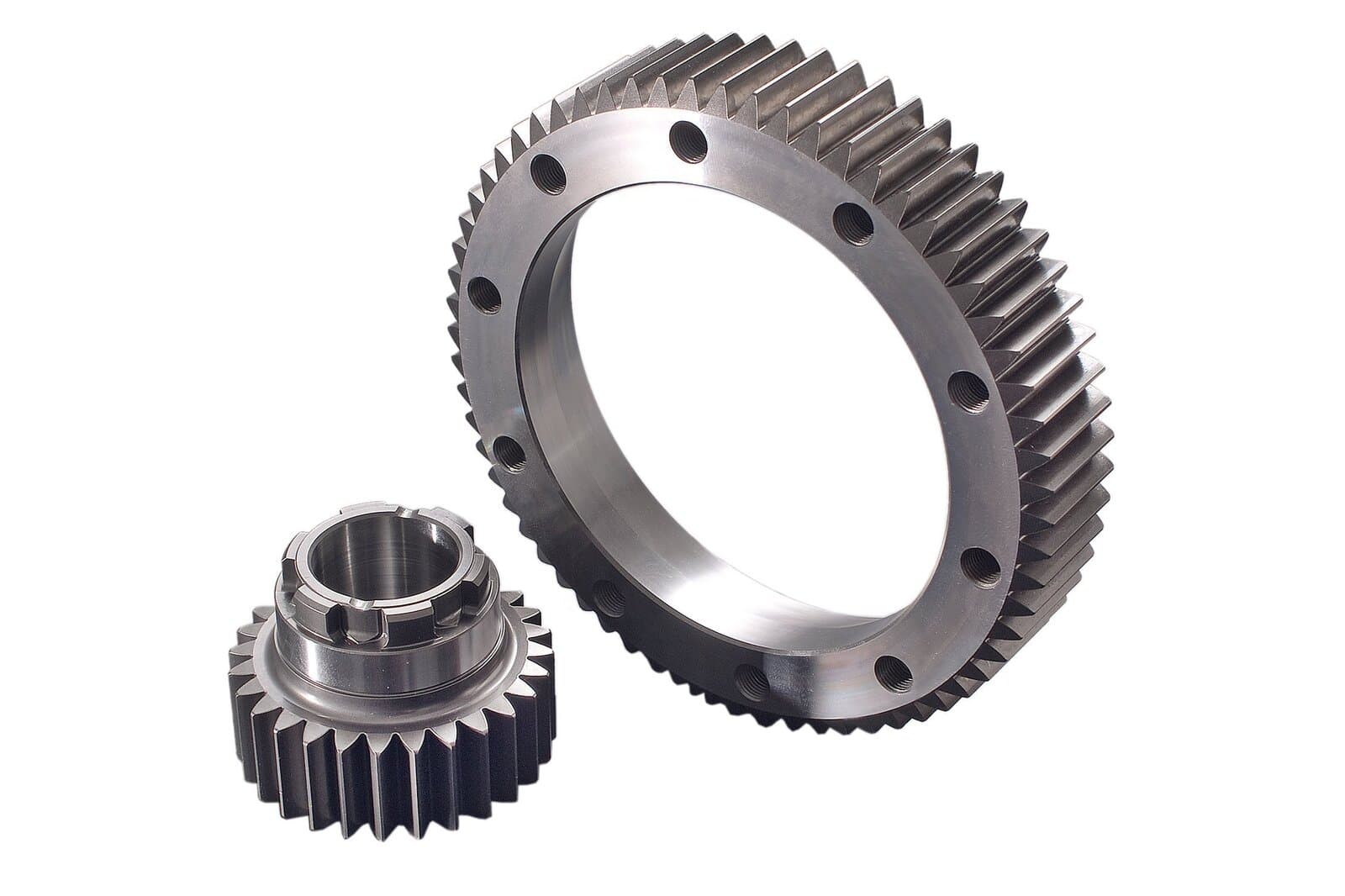

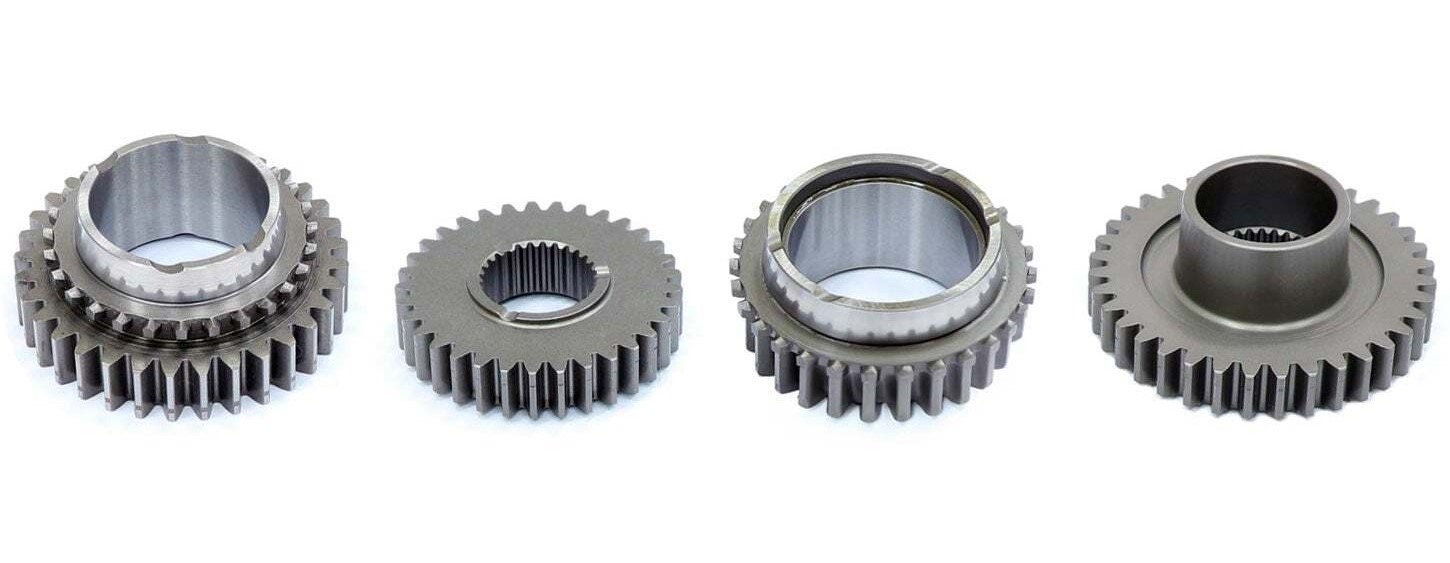

2. What Are Straight Cut Gears?
Straight cut gears (often simply called spur gears) are cylindrical gears with teeth that are:
- Parallel to the shaft axis, and cut with a constant profile across the face width.
When a pair of straight cut gears meshes on parallel shafts, they:
- Transmit torque and speed between the shafts
- Provide a fixed, precise gear ratio defined by tooth count
- Operate mainly with rolling contact along the involute profile
Compared with helical gears, straight cut gears generate almost no axial thrust from the tooth mesh, which reduces the axial load that bearings and housings must carry.
3. Why choose Straight Cut Gears
Straight cut gears are not“better”in every way, but they are better suited to certain gear stages where torque, efficiency and simplicity matter more than noise and smoothness.
Key Advantages of Straight Cut Gears
The table below summarizes the main technical advantages of straight cut gears and what they mean for OEM designers.
| Aspect | Behavior of straight cut gears | Design implications for OEMs |
Mechanical efficiency | Predominantly rolling contact with limited sliding, which reduces tooth friction and churning losses. | Slightly higher efficiency than comparable helical stages in similar conditions; helps reduce temperature rise and improve usable torque in compact gear trains. |
| Load-carrying capability | Robust tooth geometry, multiple teeth in contact, easy to predict and analyse bending and contact stresses. | Well suited to high-torque, low-to-medium-speed gear stages such as drive gears, intermediate gears and output gears in heavy-duty machinery. |
| Axial thrust | Mesh produces negligible axial thrust compared with helical gears. | Bearing arrangements can focus on radial loads; axial shoulders and housing features can be simpler and more cost-effective. |
| Manufacturing and inspection | Simple tooth form; well-established hobbing, shaping, shaving and grinding processes; profile and lead errors are straightforward to measure and correct. | More controllable cost and lead time for a given accuracy grade; prototypes and small batches can be delivered faster; field inspection and replacement of gears is easier. |
In many real-world programs, these advantages are more important than small differences in noise, especially for gears working deep inside the machine where robustness and serviceability are critical.
4. The Main Trade-Off: Noise and Smoothness
The main limitation of straight cut gears is noise and vibration:
- Mesh stiffness changes more abruptly as teeth enter and leave contact
- At medium to high pitch line speeds, gear whine is more likely
- Vibration peaks can be higher than in comparable helical gear stages
For high-speed, noise-sensitive positions – such as EV main reduction stages very close to the passenger cabin – helical gears or other low-noise solutions are often preferred.
However, for many torque-carrying stages located deeper inside housings, careful micro-geometry, good surface finish and proper lubrication can keep straight cut gear noise within acceptable limits. In these positions, the efficiency and robustness of straight cut gears often justify their use.
5. Straight Cut Gear Applications in the Four PairGears Sectors
Straight cut gears appear in different positions and duties across Agricultural Machinery, Heavy Truck, Construction Equipment and EV programs.
5.1 Agricultural Machinery
In agricultural machinery, straight cut gears are widely used in power transmission gear stages that drive implements and internal mechanisms.
Typical gear positions
-Main drive gear pairs, intermediate straight gear stages and output gears in tractors and harvesters
-Straight cut gears in balers, forage harvesters and feed mixers
-PTO drive and driven gears transmitting power to pumps or implements
Why straight cut gears work here
-Duty cycles are dominated by low to medium speed and high torque
-Machines operate in dusty, muddy environments; robust, easy-to-service gears are essential
-Operators accept a certain noise level; durability and serviceability are more important than very low noise
For agricultural customers, PairGears supplies straight cut gears that combine:
- Carburizing or nitriding heat treatment
- Shot peening for improved bending and contact fatigue life
- Controlled backlash that balances noise with contamination tolerance
5.2 Heavy Truck
In heavy truck drivelines, straight cut gears often carry specific functions under special operating conditions.
Typical gear positions
-Straight cut gear pairs used for reverse gear
-Low-speed, high-torque straight gear stages in transfer drives or PTO drives
-Small spur gears and intermediate gears in auxiliary drive units
Why straight cut gears work here
-Reverse and some auxiliary functions are used at low speed; higher noise is acceptable
-For high-torque positions, straight tooth geometry offers clear load paths and strong tooth strength
-Inspection and replacement of individual gears are simpler and faster
For these gear stages, PairGears focuses on:
- High-quality gear grinding and micro-geometry to stabilize contact patterns
- Material and heat treatment routes aligned with OEM requirements
- Consistent gear accuracy and performance over long-term, high-volume supply
5.3 Construction Equipment
Construction equipment uses straight cut gears extensively in travel, hoisting, slewing and auxiliary drive stages.
Typical gear positions
-Straight gear stages on drive shafts in travel and reduction gear trains
-Drive pinions and intermediate gears in hoists and winches
-Straight cut gears in slewing drives and auxiliary power modules
Why straight cut gears work here
-Operating conditions include frequent shock loads and start–stop cycles
-Gears must survive dust, sand and debris, with only moderate protection
-Gear stages are usually located away from the operator; noise is secondary to reliability and life
For construction equipment programs, PairGears provides:
-Straight cut gears in high-strength alloy steels with carburizing and grinding
-Micro-geometry tailored to improve load distribution under shaft deflection
-Surface treatments and lubrication advice to combat abrasive wear
5.4 Electric Vehicle (EV)
In EV, helical gears dominate the main high-speed reduction stages, but straight cut gears still play important roles in development, auxiliary systems and test rigs.
Typical gear positions
-Prototype straight cut gears used to validate gear ratios and layouts in early EV drive development
-Straight cut parking lock gears and certain auxiliary drive gears with intermittent duty
-Test gears in motor and inverter rigs, where noise is not transmitted to passengers
Why straight cut gears add value
-Very fast to manufacture and adjust during early design iterations
-Simple contact patterns that make NVH and durability issues easier to diagnose
-In auxiliary mechanisms and test environments, noise is often not a limiting factor
For EV customers, PairGears can:
- Supply prototype straight cut gears quickly for early evaluation
- Help transition from straight cut to helical or other gear forms once the design is fixed
- Provide dedicated test gears and shafts for laboratory rigs
6. How PairGears Supports Straight Cut Gear Projects
For straight cut gear projects, PairGears offers support across the full life cycle of the gear:
Concept and design review
- Tooth count, module, pressure angle and safety factors
- Initial checks for bending and contact fatigue
Material and heat treatment selection
- Choosing between carburizing, nitriding or through-hardening based on load and life targets
- Matching steel grades to your standards and regional supply chain
Manufacturing and quality control
- Full process chain from blanks and hobbing/shaping to shaving, grinding and deburring
- Control of profile, lead, runout and backlash to ISO / AGMA standards
Validation and optimization
- Tuning contact patterns and backlash based on test feedback
- Supporting the transition from prototypes to stable series production
7.Conclusion
Straight cut gears are not meant to replace helical gears everywhere. They are the right tool for the right gear stages, especially when torque, efficiency and robustness are more critical than ultra-low noise, when designers want to simplify axial load paths and bearing arrangements, and when gears must operate reliably under contamination, shock and harsh duty cycles.
Across Agricultural Machinery, Heavy Truck, Construction Equipment and EV programs, PairGears works with OEMs and Tier-1s to define where straight cut gears are appropriate and where helical or other gear forms are a better fit. If you are planning or upgrading your spur gear drive gears, power take-off shaft gears, or support drive gears, Contact Us to discuss how PairGears can support your next spur gear project.
