1.Introduction
As a precision gear manufacturer and custom gear supplier, PairGears designs and produces spiral bevel gears and matching shafts for four key sectors: Agricultural Machinery, Heavy Truck, Construction Equipment and Electric Vehicle (EV).
In these programs, spiral bevel gears are critical for transmitting power between intersecting shafts, changing direction and multiplying torque in compact spaces. This guide explains how spiral bevel gears are designed, how they work, and where they are typically used across these four sectors.

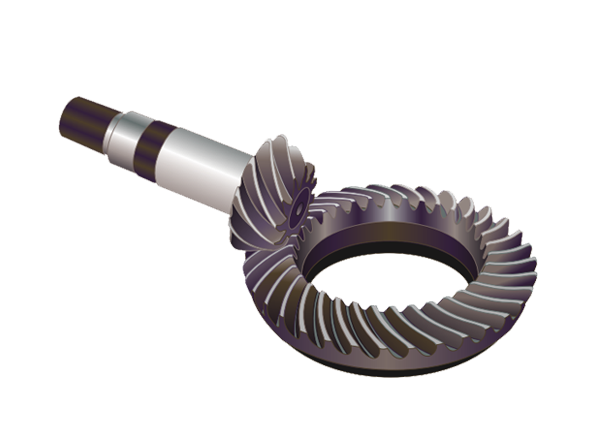

2. What Are Spiral Bevel Gears?

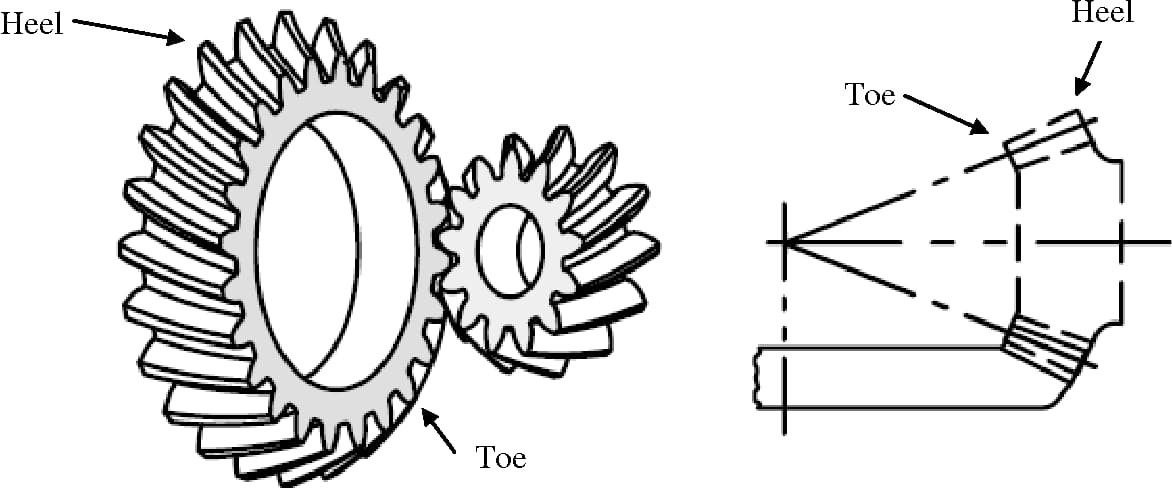

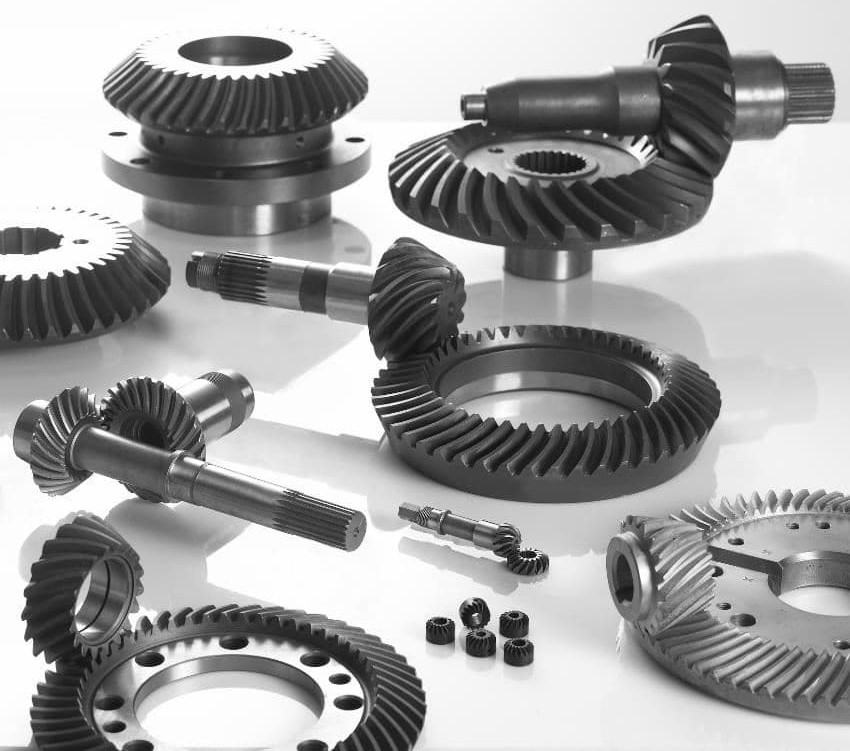

Spiral bevel gears are a type of bevel gear used between intersecting shafts (most commonly at 90°, but other angles are also possible). Their teeth are cut on a conical surface, like other bevel gears, but with a spiral shape rather than straight lines.
-Bevel gears transfer motion and torque between shafts that intersect at an angle.
-The term“spiral”describes the curved, helical teeth that wrap around the gear cone.
Compared with straight bevel gears, spiral bevel gears offer smoother meshing, higher load capacity and better durability, making them suitable for high-torque, long-life duty in axles and angle drives.
3. Spiral Tooth Form and Contact Pattern
The core feature of spiral bevel gears is their spiral tooth form and contact pattern.
Spiral tooth form
-Tooth lines follow a spiral over the cone rather than straight radial lines.
-During meshing, contact builds up gradually along the tooth instead of engaging suddenly.
-This reduces impact at tooth entry and exit and helps keep torque transfer more stable.
Contact pattern
Because of the spiral tooth form, spiral bevel gears develop a characteristic contact pattern:
-The load-bearing area on the tooth surface appears as a curved band.
-The position, shape and size of this band indicate how load is distributed over the tooth surface.
-Proper mounting and adjustment aim to keep the contact pattern centered and evenly spread, which supports good load sharing and longer life.

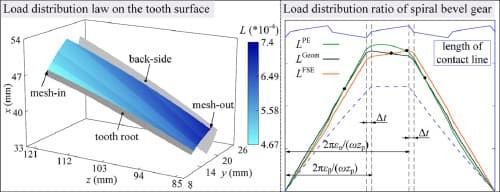

4. Load Distribution and Key Benefits
Spiral bevel gears distribute transmitted torque over a larger tooth surface and multiple teeth in contact at the same time. This leads to several practical benefits.
| Aspect | Spiral bevel gear behaviour | Engineering meaning for customers |
Load distribution | Multiple teeth in contact, larger contact area | Lower local stress, improved fatigue performance |
| Strength & life | Less stress concentration on single points | Higher torque capacity and longer service life |
| Running stability | Gradual mesh, smoother torque transfer | More stable operation under changing loads |
For high-torque, long-life applications such as drive axles or final drives, these advantages are often more important than any small differences in complexity or manufacturing cost.
5. Axial Thrust and Support Design
Because the teeth are spiral, spiral bevel gears generate axial thrust in addition to radial loads and torque:
-The magnitude and direction of axial thrust depend on the spiral direction, spiral angle and transmitted torque.
-Axial thrust is normally supported by tapered roller bearings or combined bearing arrangements.
-Designers need to consider tooth direction, bearing layout, preload and housing stiffness together.
When PairGears supports spiral bevel gear design or review, we typically look at bearing loads and alignment together with the gear geometry, and propose tooth hand and support layouts that match the customer's axle or gear housing design.
6. Manufacturing and Quality Control
Spiral bevel gears have complex tooth geometry and require suitable equipment and process control:
Dedicated cutting systems
-Typically produced using Gleason or Klingelnberg type processes or similar bevel gear cutting principles.
-Roughing and finishing cycles are combined to form the required spiral tooth form.
Finishing and adjustment
-Heat treatment (for example carburizing and quenching) is followed by finishing operations where needed.
-Contact pattern is tuned by tooth corrections and by mounting adjustments (for example shims and offsets).
Inspection and quality control
-Inspection covers tooth form, tooth alignment, runout, backlash and contact pattern, according to relevant gear accuracy standards such as AGMA guidelines.
-Fatigue performance is evaluated against the expected load spectrum and life targets.
As a precision gear manufacturer, PairGears chooses process routes and inspection plans according to the required accuracy class, life target and target market (agriculture, commercial vehicle, construction equipment, EV), balancing performance with cost.
7. Lubrication and Reliability
Under high load and long-running conditions, spiral bevel gears are very sensitive to lubrication quality:
-Use gear oils with good extreme-pressure and anti-wear performance and stable oxidation resistance.
-Select lubrication methods (oil bath, splash, spray or circulating oil) based on speed, load and temperature.
-Check oil level, oil condition and tooth wear regularly, and maintain seals and breathers.
A well-matched lubrication concept helps control friction and wear, reduces risk of pitting and scuffing, and is essential for long-term reliability in real working conditions.
8. Applications in the Four PairGears Sectors
8.1 Agricultural Machinery
In tractors, combines, forage harvesters and other agricultural machines, spiral bevel gears are commonly used in:
-Drive axles and differential gear sets (final reduction and differential input).
-Front drive / 4WD angle drives.
-Right-angle drives for PTO or working implements where needed.
Typical requirements:
-Medium-to-low speed, high torque and long working hours.
-Dust, mud and shock loads in field operation.
-High reliability and manageable maintenance intervals.
PairGears supplies spiral bevel gear sets for agricultural axles and drive modules, using carburized and ground teeth combined with optimized contact patterns to support long life in tough field conditions.
8.2 Heavy Truck
In heavy trucks and commercial vehicles, spiral bevel gears mainly appear in:
-Main drive spiral bevel gear sets in drive axles.
-Angle drive gears between intermediate and rear axles in multi-axle layouts.
-Certain auxiliary drive angle stages.
Typical requirements:
-Combination of high-speed cruising and heavy-load start.
-Long-distance operation and strong sensitivity to downtime.
-Demands for efficiency, durability and batch-to-batch consistency.
For these programs, PairGears focuses on consistent contact patterns, robust material and heat treatment routes, and stable dimensions in mass production, helping fleet operators control total cost over the life of the vehicle.
8.3 Construction Equipment
In loaders, excavators, dump trucks, cranes and other construction machinery, spiral bevel gears are used in:
-Axles and wheel reduction units where direction and speed must be changed.
-Slew and swing drives and steering-related angle transmissions.
-Compact angle drives in confined spaces for torque transfer and reduction.
Typical requirements:
-Heavy load, frequent shock and repeated starts and stops.
-High contamination from dust, sand and mud.
-Very high expectations for strength and reliability.
PairGears adapts module, face width, spiral angle and material systems to the load spectrum of construction equipment, combining suitable heat treatment and surface strengthening to support long, predictable service life.
8.4 Electric Vehicles (EV)
In electric drive axles and other EV-related driveline systems, spiral bevel gears are often used in:
-Main spiral bevel sets and differential input gears in electric drive axles.
-Angle drives in EV special vehicles, light trucks and electric off-road machinery.
-Auxiliary angle stages that must combine compact size with reliable torque transfer.
Typical requirements:
-High motor speeds with demanding gear accuracy and contact conditions.
-High efficiency to minimize energy loss and temperature rise.
-Compact and lightweight layouts.
PairGears can supply high-precision spiral bevel gear sets for EV drive axles, combining precise tooth finishing and contact pattern tuning to help customers reach their efficiency, life and packaging targets.
9.FAQ
Q1: What are spiral bevel gears mainly used for?
A: They transmit power between intersecting shafts at an angle, typically in axles, differentials, final drives and angle drives in agricultural, heavy truck, construction and EV.
Q2: What are the main benefits of using spiral bevel gears?
A: They offer smooth torque transfer, good load distribution, high load-carrying capacity and compact angle-drive layouts, making them well suited to heavy-duty, long-life applications.
Q3: What do you need to evaluate a spiral bevel gear project?
A: : Drawings or samples, torque and speed range, target life, key installation data (shaft angle, center distance) and the target sector (agricultural, heavy truck, construction or EV).
Q4: Do you support samples and small trial batches?
A: Yes. PairGears can supply prototypes and small pilot batches for assembly and testing before series production.
Q5: What typical failures should users pay attention to?
A: Common issues include pitting, wear, scuffing and tooth root cracking. Proper design, materials, heat treatment and lubrication greatly reduce these risks.
10. Conclusion
Spiral bevel gears are a practical and robust solution wherever intersecting shafts must transmit high torque and change direction in limited space. Their curved tooth form, effective load distribution and compact geometry make them a natural choice in agricultural machinery, heavy truck, construction equipment and EV drive system.
As a precision gear manufacturer and custom gear supplier, PairGears supports customers from concept review through to series production of spiral bevel gears and related shafts. If you are planning or upgrading spiral bevel gear sets for axles, final drives or angle transmissions in any of these four sectors, Contact Us to discuss how PairGears can support your next spiral bevel gear program.
