1.Introduction
As a precision gear manufacturer and custom gear supplier, PairGears supports drivetrain and motion projects in Agricultural Machinery, Heavy Truck, Construction Equipment, and Electric Vehicle (EV). In these programs, engineers often need to choose between spur gears and rack and pinion systems for different parts of the machine.
This article explains the basic differences between spur gears and rack and pinion, then shows how each fits into PairGears'four key application sectors.
2.Basic Design: Spur Gears vs Rack and Pinion
Spur Gears – Rotary Power Between Parallel Shafts
Spur gears are cylindrical gears with straight teeth cut parallel to the shaft axis. They are used to:
1. Transmit torque and speed between two parallel shafts
2. Set precise gear ratios through the tooth count
3. Form single stages or multi-stage gearboxes and reducers
In our core sectors, spur gears appear inside gearboxes, reduction stages, differentials and auxiliary drives.

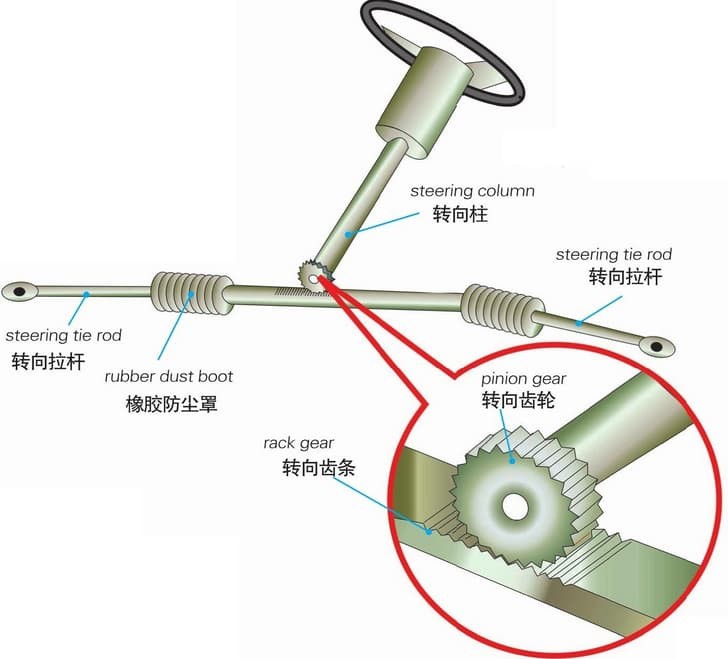

Rack and Pinion – Converting Rotary Motion to Linear Motion
A rack and pinion set consists of:
A pinion: a small spur gear
A rack: a straight bar with teeth cut along its length
When the pinion rotates, it moves the rack in a straight line. This system is ideal when you need to:
1. Convert rotary motion from a steering wheel or motor into linear travel
2. Generate linear force or displacement over a defined stroke
3. Achieve relatively simple, robust linear motion without screws or cylinders
3.Motion and Transmission Characteristics
Spur Gears: Rotary to Rotary Transmission
Spur gears are best when:
1. Both input and output are rotating shafts on parallel axes
2. You need to change speed and torque with a known, fixed ratio
3. Continuous power transmission is the primary requirement
Typical examples include gearbox stages, power take-off drives and differential side gears.
Rack and Pinion: Rotary-to-Linear Conversion
Rack and pinion systems shine when:
1. You must convert rotary input to linear output, or vice versa
2. Accurate linear positioning or repeatable travel is required
3. The stroke is longer than what is convenient for screw actuators
This makes rack and pinion attractive in steering systems, linear slides and adjustment mechanisms.
4.Efficiency, Load Capacity
Efficiency and Torque Capacity of Spur Gears
With proper design, alignment and lubrication, spur gears can improve efficiency. Key points:
- High torque capacity thanks to robust tooth geometry and multiple teeth in contact
- Good performance under continuous duty and cyclic loading
- Well suited to high-torque, long-life transmission units in heavy-duty machinery
For PairGears customers, spur gears are the workhorses of many drivetrain designs.
Efficiency and Linear Force from Rack and Pinion
Rack and pinion systems also achieve high efficiency when:
- The pinion and rack are well aligned
- The tooth geometry and surface finish are controlled
- Lubrication is maintained across the stroke
Instead of output torque, the key figure is linear force along the rack. This is crucial in steering, clamping and lifting mechanisms where the designer cares about thrust rather than output torque.
5.Backlash and Positioning Accuracy
Spur gears:
- Require some backlash to avoid interference and allow for lubrication
- Backlash can be minimized through careful tooth modifications, tight tolerances and controlled mounting
- In gearboxes and differentials, the goal is a balanced compromise between noise, efficiency and life—not zero backlash
Rack and pinion:
- Can achieve very low backlash with preloaded designs (e.g., double pinions, spring preload, or helical racks)
- Provide precise, repeatable linear motion when combined with rigid guides and good bearings
- Are sensitive to mounting stiffness; poor support can lead to uneven wear and position drift
6.Application Examples in the Four PairGears Sectors
Below are typical ways spur gears and rack and pinion are used in the four sectors where PairGears focuses its engineering and manufacturing support.
6.1 Agricultural Machinery
Spur gear applications
Tractor and harvester gearboxes (primary and auxiliary stages)
PTO drives, baler gear trains and forage harvester transmission stages
Hydraulic pump drives and mechanical power take-off shafts
Requirements:
- High torque under shock loading
- Resistance to dust, mud and moisture
- Long service intervals and easy maintenance
Rack and pinion applications
Steering systems on light tractors and specialized orchard machines
Height and angle adjustment mechanisms for sprayer booms or headers
Linear stops and end-position limiters in seeding and planting equipment
Requirements:
- Clear, repeatable linear travel
- Acceptable backlash even under contamination
- Simple inspection and lubrication in field conditions
6.2 Heavy Truck
Spur gear applications
Manual and automated manual transmission (AMT) stages
Axle gear sets combined with spiral bevel or hypoid main gears
PTO drives for pumps, winches or auxiliary equipment
Requirements:
- High contact fatigue life over many millions of kilometers
- Controlled NVH behaviour at highway speeds
- Strong torque capacity with compact packaging
Rack and pinion applications
Rack and pinion steering systems on light and medium trucks
Linear adjustment mechanisms for steps, cab interiors or body components
Requirements:
- Precise steering feel with minimal backlash
- Robust operation under road shock and vibration
- Compliance with OEM steering safety and durability standards
6.3 Construction Equipment
Spur gear applications
Travel reduction gears in loaders, excavators and pavers
Planetary and spur stages in swing drives and winches
Gear sets in auxiliary power modules and hydraulic pump drives
Requirements:
- Survival under shock loads and uneven duty cycles
- High resistance to abrasive contamination (dust, sand, crushed stone)
- Long life at low-to-medium speeds and heavy loads
Rack and pinion applications
Linear lifting or locking mechanisms in some scissor lifts and platforms
Positioning stages on certain telescopic booms or tool carriers
Requirements:
- Stable linear positioning under side loads
- Manageable wear with realistic lubrication and inspection intervals
- Simple, rugged construction suitable for on-site service
6.4 Electric Vehicle (EV)
Spur gear applications
High-speed reduction stages in EV gearboxes
Differential side gears and planetary elements in e-drive units
Auxiliary drives for pumps, compressors or accessories
Requirements:
- High precision at high shaft speeds
- Low noise and low loss for extended range
- Consistent quality over large production volumes
Rack and pinion applications
Electric power steering (EPS) rack mechanisms
Seat and tailgate actuators with rack-based linear stages
Compact linear actuators for battery pack cooling valves or shutters
Requirements:
- Compact design and low mass
- Quiet, smooth motion with tight backlash control
- Reliable operation under frequent start–stop cycles
7.How to Choose Between Spur Gears and Rack and Pinion
When OEM engineers work with a precision gear manufacturer or custom gear supplier like PairGears, we usually begin with a few key questions:
1.What motion do you really need?
- Rotary-to-rotary between parallel shafts → spur gears (or planetary stages)
- Rotary-to-linear or precise linear positioning → rack and pinion (or ball screw, actuator, etc.)
2. What are the load and life requirements?
- Very high torque, long life, complex duty cycles → spur gears in multi-stage gearboxes
- Moderate loads but tight positioning or response requirements → rack and pinion often fits better
3. What are the space and layout constraints?
- Enough room for shafts, bearings and a housing → gearbox with spur stages
- Long straight travel or distributed loads → rack and pinion along the machine frame
4. What is the total cost and maintenance strategy?
- High-volume standardized gearboxes → spur gears can be strongly cost-optimized
- Where screws or cylinders are too expensive or complex → rack and pinion can be a simple, robust alternative
8.Conclusion
Spur gears are ideal for efficient torque and speed transfer between parallel shafts, while rack and pinion is the right choice when you need to convert rotary motion into precise linear motion. In Agricultural Machinery, Heavy Truck, Construction Equipment and Electric Vehicle (EV) programs, the most effective designs usually combine both, each used where it delivers the most value. As a precision gear manufacturer and custom gear supplier, PairGears can help you choose, design and produce the right gear solution for your next project—Contact Us to discuss your spur gear or rack-and-pinion needs.
