Input Shafts Explained: Function, Design & Selection

1.Introduction

Think of a gearbox as a relay race,the input shaft is the first runner that takes power from the engine or e-motor and cleanly hands it to the gears. If that first handoff is sloppy—too much wobble, poor surface finish, weak spline fit—everything that follows gets harder: bearings run hotter, gears get noisy, and parts wear out early.

At PairGears—a precision gear manufacturer and custom gear supplier serving agricultural machinery, heavy truck, construction equipment, and EV—we make input shafts with the same discipline we apply to gears. This plain-English guide explains what input shafts are, how they're designed and manufactured, what can go wrong, and how to pick the right one for your drivetrain.

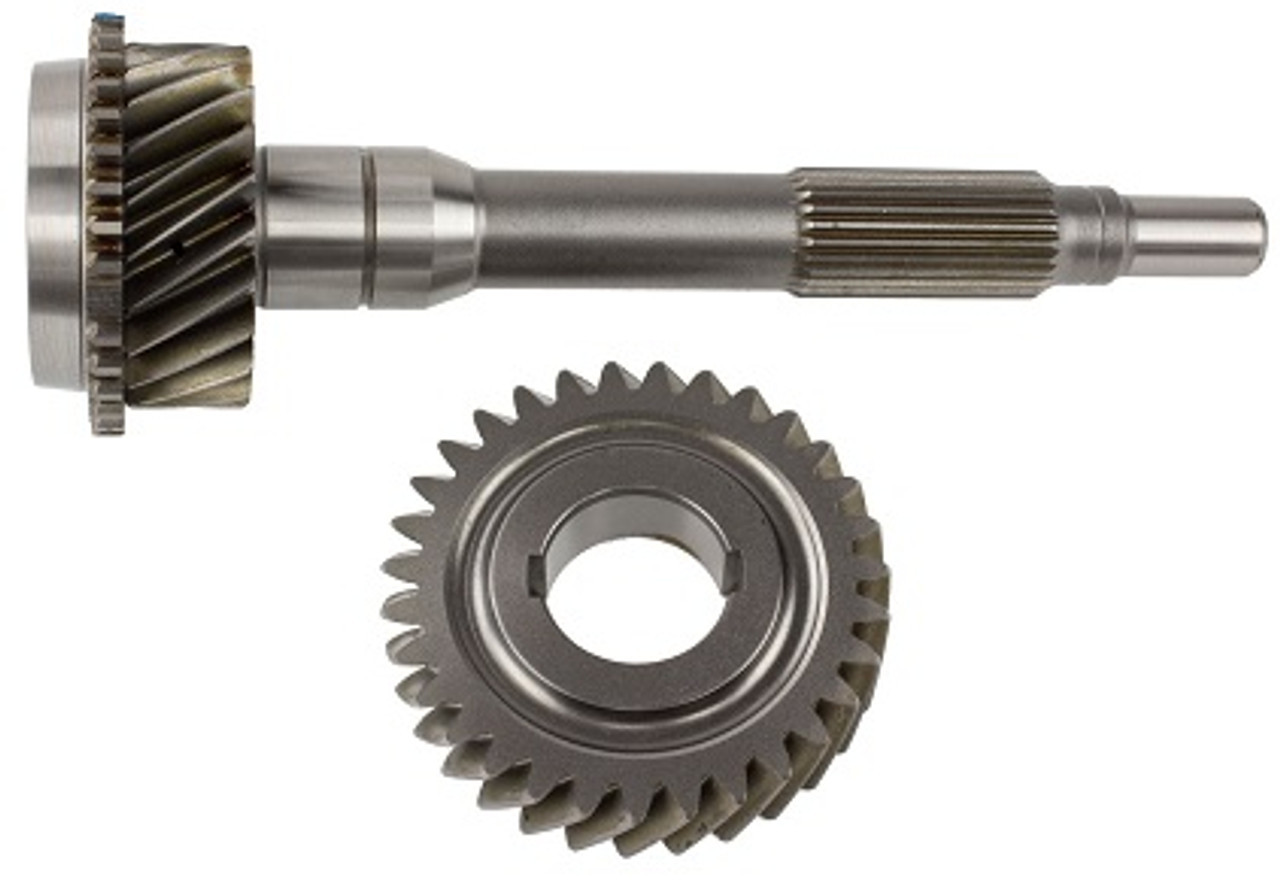

2.What is an input shaft?

An input shaft is the rotating shaft that brings torque into a transmission, transfer case, reduction box, or PTO drive. One end connects to the power source (clutch hub, coupler, or e-motor rotor). The other end connects to the first gearset (gear seat, spline, or synchronizer hub).

What it must do—clearly and reliably:

Carry torque without twisting or cracking.

Stay straight and centered so bearings and gears run smoothly.

Feed oil to bearings and meshes through simple holes or grooves.

Keep quiet by holding tight runout and good surface finish.

Plain analogy: If a bicycle crank is bent, the whole bike feels rough. Same idea—only the stakes in a truck or EV drivetrain are much higher.

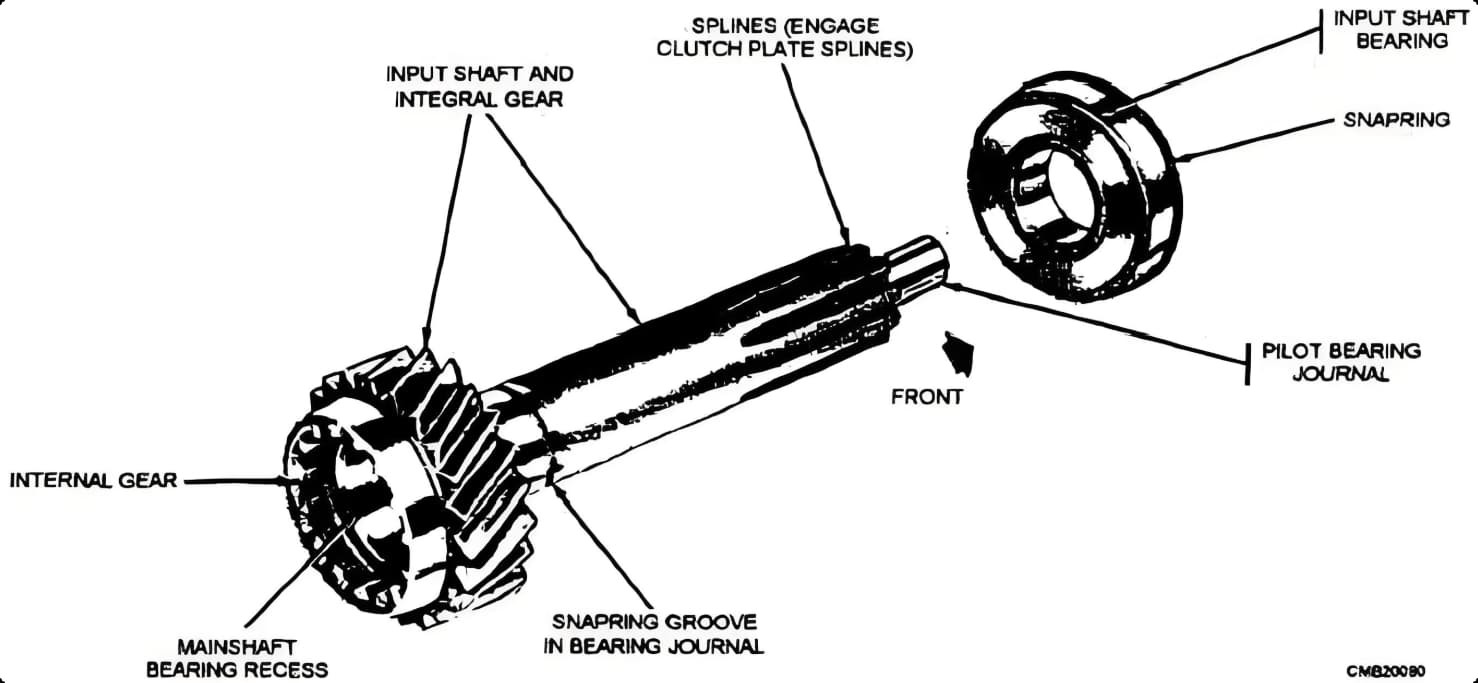

3.Basic terms you'll see on drawings

Spline: Teeth that slide into a matching hub to transmit torque.

Bearing journal: Smooth, hardened area that rides inside a bearing.

Runout (TIR): How much the shaft wobbles when rotated; lower is better.

Fillet radius: The small rounded corner where a step meets a shoulder—bigger radii reduce stress.

Case depth (Eht): Depth of hardened surface after heat treatment; protects against wear.

Surface roughness (Ra): “Microscopic smoothness” of a surface; smoother journals = cooler, quieter bearings.

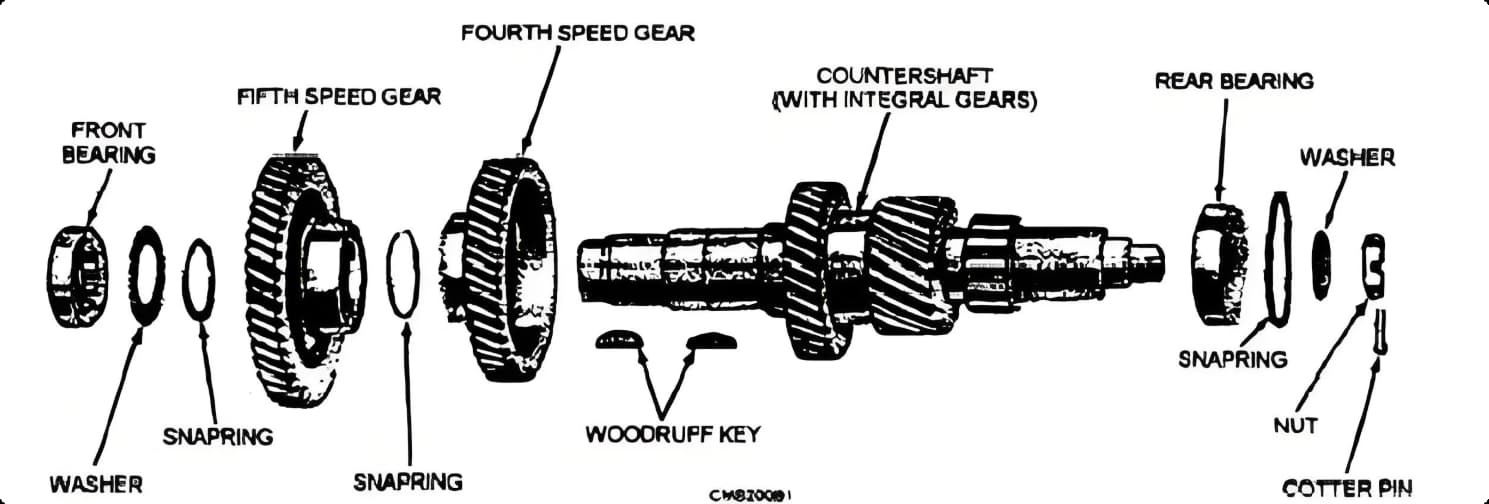

4.How power flows through the input shaft

Power in: engine clutch hub or e-motor coupler drives the shaft splines.

Support: shaft spins on two bearings, held by precise journals.

First gearset: torque reaches the first gear seat or synchronizer.

Oil supply: cross-drilled holes and grooves feed bearings and gears.

Outcomes: if geometry and finish are good, the pattern on the mating gear is centered, bearings run cool, and noise stays low.

Tip: the shaft is both a mechanical link and a precision reference. Its datums (main journal, pilot diameters) set alignment for everything else.

5.What makes a good input shaft?

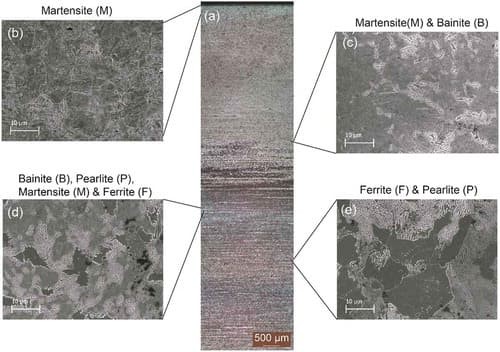

A. Right material + heat treatment

Carburized alloy steel (e.g., 20MnCr5, 18CrNiMo7-6): hard surface for wear (HRC ~58–62), tough core for shocks—great for trucks and EVs.

Quenched & tempered steels (e.g., 42CrMo4/4140, 40Cr): tough and repairable; add induction hardening on journals or splines—common in agricultural and construction equipment.

Nitrided steels (e.g., 38CrMoAlA): thin, hard layer with very low distortion—useful where geometry must stay extremely accurate (some automation and EV auxiliaries).

Rule of thumb: high torque or long life → deeper/harder surface; high speed or tight noise targets → low-distortion process and fine finish.

B. Clean geometry

Generous fillets at step transitions to avoid cracks.

Correct spline class (backlash that's tight enough to avoid rattle but not so tight it binds).

Tight runout to keep gear contact centered and bearings happy.

Oil holes sized and deburred—oil must actually get there.

C. Smooth surfaces + good balance

Polished journals (often“superfinished”) reduce bearing friction and noise.

Balanced rotor (ISO G grade or OEM target) prevents vibration at speed.

6.How an input shaft is made

Blanking: start with forged/rolled steel for strength and cleanliness.

Rough machining: turn the basic shape; pilot-drill oil holes.

Heat treatment: carburize/induct/nitride to get a hard, wear-resistant surface.

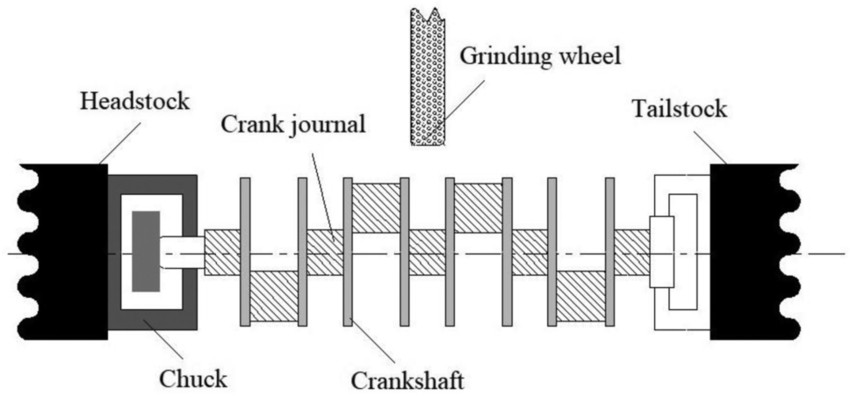

Finish machining: grind bearing journals and critical diameters; finish splines to class; deburr all edges and oil holes.

Superfinish & balance: polish journals (when required); balance the shaft to the specified residual value.

Inspection: measure runout, hardness, case depth, surface roughness, spline form, and—if shipped with mating gear—check a light contact pattern.

7.Common problems

Problem	Likely cause	Quick fix	Better prevention
Rattling or clunk at idle	Spline backlash too large or misaligned	Re-center hub, verify fit	Choose proper spline class; control concentricity
Gear whine at certain speeds	Excess runout (TIR), poor journal finish	Rework/grind journals; re-balance	Tighter TIR; superfinish journals; verify case depth and micro-geometry
Hot bearings / discoloration	Rough journal, weak lubrication	Polish journals; check oil flow	Specify Ra ≤ 0.2–0.4 μm; airflow/borescope check on oilways
Fretting on splines	Shallow case, dry fit, micro-slip	Apply anti-fretting coat; lube fit	Deeper case at splines; define assembly lube & torque
Cracks at shoulder	Small fillet, stress concentration	Redesign fillet radius	Add generous fillets + matching reliefs in mating parts

Fast wins: (1) tighten runout, (2) finish the bearing journals well, (3) confirm oil flow, and (4) make the spline fit intentional—not accidental.

8.Picking specs without overcomplicating it

Runout (TIR) to main datum: start with ≤ 0.01–0.02 mm for most applications; go tighter for high-speed EV inputs.

Journal finish: Ra 0.2–0.4 μm with roundness/waviness ≤ 3–5 μm.

Spline alignment: concentricity/parallelism to the main datum ≤ 0.02 mm.

Case depth (if applicable): deep enough at splines and journals to resist wear under your duty cycle (we'll help size it).

Residual unbalance: to rotor spec (e.g., ISO G2.5 for high speed).

Don't guess: give us torque, speed range, duty cycle (how often, how long), environment (dust, mud, temperature), and any noise limits. We'll propose a right-sized stack.

9.How needs differ by industry

Agricultural machinery

Environment: dirt, water, shock loads.

Focus: deep case at splines, robust seals, oil holes that won't clog, tough core for misuse.

Typical build: 40Cr/42CrMo, Q&T + induction on journals/splines; ground journals.

Heavy truck

Environment: long miles, strict pass-by noise limits.

Focus: low distortion, repeatable geometry, quiet bearings.

Typical build: 20MnCr5/18CrNiMo7-6, vacuum carburize + gas quench, hard grind, superfinish, tight runout and balance.

Construction equipment

Environment: heavy, intermittent peaks; heat and contamination.

Focus: bending strength, wear resistance, easy service.

Typical build: 42CrMo/4340, Q&T core; deep induction at journals and splines; shot-peened fillets.

Electric vehicle(Ev）

Environment: high RPM, very low noise floor.

Focus: tight TIR, superior finish, micro-geometry that keeps contact patterns centered.

Typical build: 16/20MnCr5, low-pressure carburize + gas quench, grind + superfinish, ISO G2.5 balance.

10.A simple checklist for your drawing or RFQ

Interfaces fixed? Bearing types and spans, spline/hub, gear seat, clutch interface.

Material + heat treat chosen for duty? Put hardness and case depth (Eht) on the print.

Fillets and reliefs defined? Avoid“sharp corners by default.”

Spline class & datum plan set? Align splines to the main journal.

Oil holes sized and verified? Add“no burrs permitted”; require borescope or airflow test.

Finish & balance specified? Journal Ra and waviness; residual unbalance target.

QA artifacts listed? Runout charts, hardness traverse, case depth, spline inspection, balance report, oilway verification.

If you already have a drawing, we'll do a DFM review and suggest only the few changes that move life and noise the most.

11.What PairGears delivers with the parts

Geometry & finish: runout to datum, journal roundness/waviness, Ra/Rz records, spline profile/lead/pitch.

Metallurgy: surface hardness, Eht at critical zones, microhardness traverse.

Function: balance report, oilway airflow/leak test, light contact pattern (if shipped with mating gear).

Traceability: material heat, furnace load logs, tool IDs, gage R&R references.

All of this can be packaged for PPAP/FAI if your program requires it.

12.Conclusion

Getting the input shaft right makes every downstream component's life easier: quieter gears, cooler bearings, cleaner contact patterns, and fewer surprises in validation. The recipe is simple: clear interfaces, appropriate metallurgy, friendly geometry, verified surfaces and balance, and evidence you can trust.

If you'd like a quick sanity check on a drawing—or a build plan from blank to balanced shaft— Contact us.
